Sand

Concrete Sand

NYS DOT Spec. Concrete Sand

Mason Sand

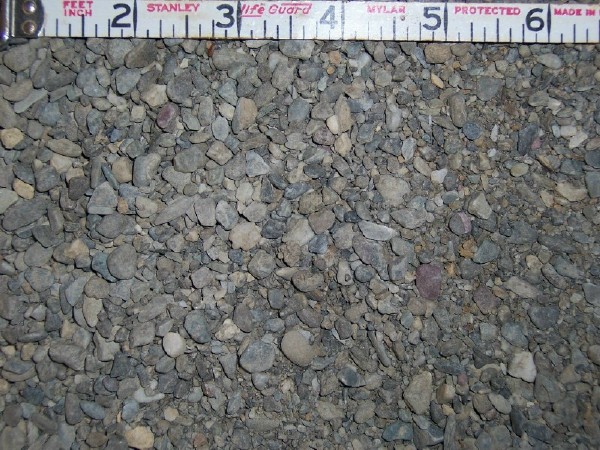

Material: Road Sand

Price: $17.00/ton

Gradation:

Suggested Uses*: Used to increase traction on slippery roads and for ice control.

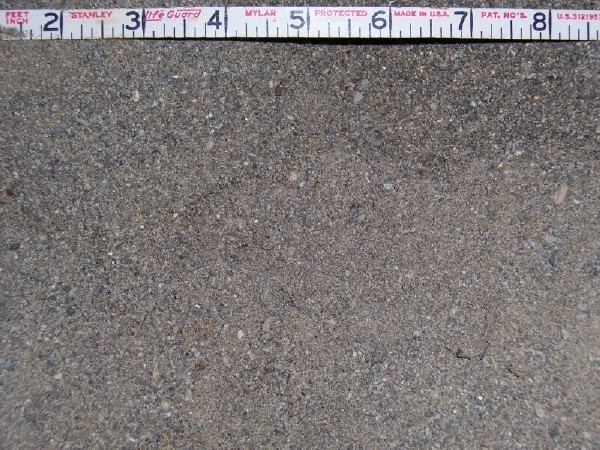

Material: Mason Sand

Price: $30.00/ton

Gradation: N/A

Suggested Uses*: For mortar, filling gaps in pavement or for use as a base under delicate materials such as liners.

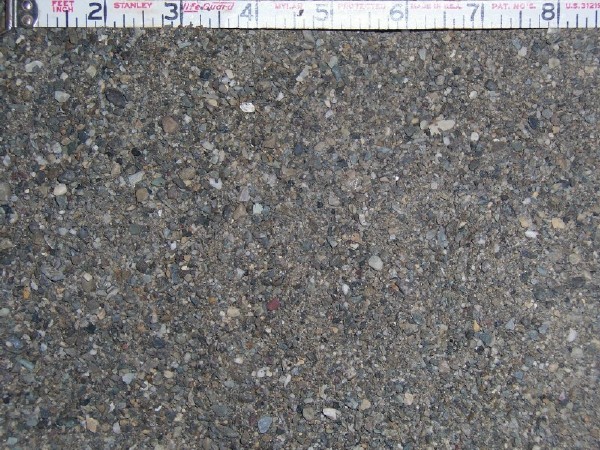

Material: NYS DOT Spec. Concrete Sand

Price: $22.00/ton

Gradation:

Suggested Uses*: For concrete projects that require NYS DOT Spec. sand in order to meet code requirements.

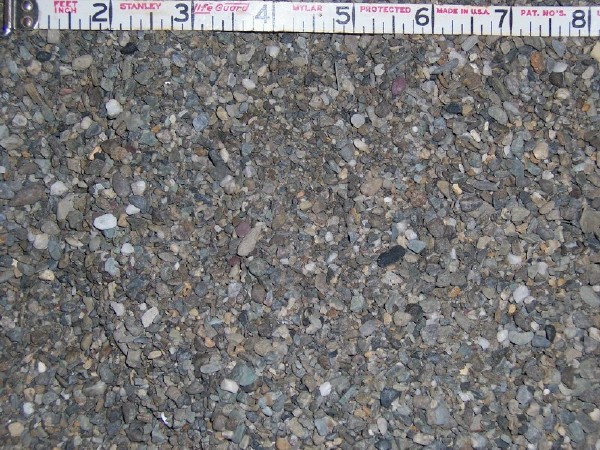

Material: Concrete Sand

Price: $19.50/ton

Gradation:

Suggested Uses*: For concrete, while this sand does not meet the specifications of NYS DOT Spec Sand, it can be used for concrete projects that do not require DOT Spec. sand.

Road Sand

*All uses are suggestions only, please consult the New York State building code regulations before undertaking any project to ensure that the material you use is appropriate and will pass inspection.

Mesh	% Retain	% Passing	NYS DOT
1/4	0.0	100.00	100-100
4M	0.3	99.7	90-100
8M	15.8	83.9	75-100
16M	22.9	61.1	50-85
30M	17.6	43.5	25-60
50M	20.7	22.8	10-30
100M	19.2	3.7	1-10
200M	3.1	0.5	0-3
PAN	0.5	0.0	0
TOTAL	100.00	FM=2.85

Westhook Sand & Gravel Inc.

Phone: 845-897-3316

Sieve Size		% Retain	% Passing	Spec. % Pass
mm	Inches	% Retain	% Passing	Spec. % Pass
9.5 mm	3/8"	0.0	100.0
4.75 mm	#4	0.1	99.9
2.36 mm	#8	30.2	69.7
1.18 mm	#16	38.7	31.0
0.600 mm	#30	21.0	10.0
0.300 mm	#50	7.5	2.5
0.150 mm	#100	1.5	1.0
0.075 mm	#200	0.2	0.8
Pan		0.8

Sieve Size		% Retain	% Passing	Spec. % Pass
mm	Inches	% Retain	% Passing	Spec. % Pass
9.5 mm	3/8"	0.0	100.0	100
4.75 mm	#4	0.4	99.6	90-100
2.36 mm	#8	29.2	70.4	75-100
1.18 mm	#16	33.3	37.1	50-85
0.600 mm	#30	22.4	14.7	25-60
0.300 mm	#50	11.5	3.2	10-30
0.150 mm	#100	2.8	0.4	1-10
0.075 mm	#200	0.3	0.1	0-3
Pan		0.1
